State Space Tree

 A state space tree is a graphical representation of all possible states and transitions in a decision-making problem, such as an optimization or search problem. It's often used in algorithms that explore the set of all possible solutions to find an optimal solution, such as the branch and bound method for optimization problems, or backtracking algorithms for constraint satisfaction problems.

 Components and characteristics of a state space tree:

 1. Nodes:

   - Each node represents a state of the problem.

   - The root node represents the initial state before any decisions have been made.

   - Intermediate nodes represent partial decisions or partial solutions.

   - Leaf nodes (at the bottom of the tree) represent complete solutions or end states.

 2. Edges/Branches:

   - Edges connect nodes and represent transitions from one state to another due to a decision or action.

   - Each edge often has an associated cost or value if it's an optimization problem.

 3. Levels:

   - The tree is organized into levels that typically represent the sequence of decisions or the depth of the search.

   - The root node is at level 0, and each subsequent level represents further progression into the decision space.

 4. Paths:

   - A path from the root to any node represents a sequence of decisions leading to a particular state.

   - A path from the root to a leaf node represents a complete set of decisions, or a full solution.

 5. Pruning:

   - Not all branches need to be explored if it's determined early on that they cannot lead to an optimal solution. This process is known as pruning and is crucial in making the search process efficient.

 State space trees are widely used in artificial intelligence for problems like the 8-queens puzzle, the knapsack problem, scheduling problems, and many other scenarios where a solution space needs to be explored systematically. The visual representation helps in understanding the structure of the problem and the process by which algorithms explore and find solutions within the problem's state space.

Example

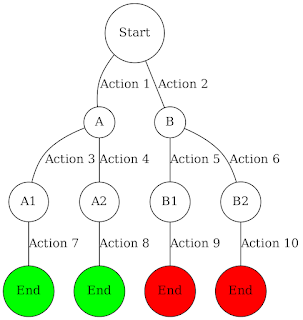

Here's a simple state space tree, which includes the above components:



- Root Node: Labeled as "Start", this is the initial state before any decisions have been made.

- Edges: Each edge represents an action or a decision that transitions the state from one node to the next.

- Intermediate Nodes: Nodes A, B, A1, A2, B1, and B2 represent intermediate states after decisions have been made. For example, node A represents the state after Action 1 has been taken from the start.

- Leaf Nodes: These nodes represent end states or complete solutions. They are at the bottom of the tree. In this tree, leaf nodes are color-coded (green for one set of decisions, red for another) to visually differentiate the end states.

- Levels: The tree has three levels, with each level representing a set of decisions. The root node is level 0, the nodes A and B are level 1, nodes A1, A2, B1, and B2 are level 2, and the end nodes are level 3.

- Paths: A path from the root to a leaf node represents a sequence of decisions. For example, the path "Start -> A -> A1 -> End" represents a series of three actions leading to a final state.

In a real-world decision-making problem, the leaf nodes would represent complete solutions, and the path to reach them would represent the decisions taken to achieve those solutions. In optimization problems, each path has an associated cost, and the goal is to find the path with the optimal cost.
